Android Custom View 102 (Part 18)

ObjectAnimator example

Guowei Lv

2 minute read

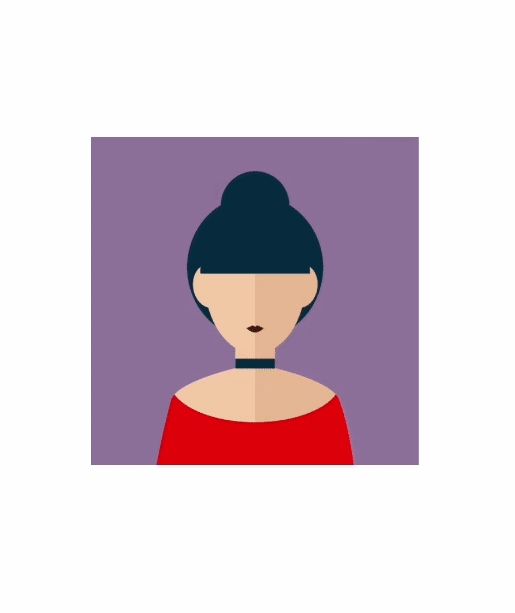

In this post let’s look at how to do this cool animation using ObjectAnimator.

This is built on top of previous post

Camera View

class CameraView @JvmOverloads constructor(
    context: Context, attrs: AttributeSet? = null, defStyleAttr: Int = 0
) : View(context, attrs, defStyleAttr) {
    private val paint = Paint(Paint.ANTI_ALIAS_FLAG)
    private val imageSize = dp2px(200)
    private val leftPadding = dp2px(100)
    private val topPadding = dp2px(100)
    private val image = getAvatar(imageSize)
    private val camera = Camera()

    private var cameraRotationUpper = 0.0f
    private var cameraRotationLower = 0.0f
    private var foldDegree = 0.0f

    fun setCameraRotationUpper(deg: Float) {
        cameraRotationUpper = deg
        invalidate()
    }

    fun getCameraRotationUpper() = cameraRotationUpper

    fun setCameraRotationLower(deg: Float) {
        cameraRotationLower = deg
        invalidate()
    }

    fun getCameraRotationLower() = cameraRotationLower

    fun setFoldDegree(deg: Float) {
        foldDegree = deg
        invalidate()
    }

    fun getFoldDegree() = foldDegree

    init {
        camera.setLocation(0.0f, 0.0f, -4 * resources.displayMetrics.density)
    }

    override fun onDraw(canvas: Canvas) {
        super.onDraw(canvas)

        canvas.save()
        canvas.translate(leftPadding + imageSize / 2, topPadding + imageSize / 2)
        canvas.rotate(-foldDegree)
        camera.save()
        camera.rotateX(cameraRotationUpper)
        camera.applyToCanvas(canvas)
        camera.restore()
        canvas.clipRect(-imageSize, -imageSize, imageSize, 0.0f)
        canvas.rotate(foldDegree)
        canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
        canvas.drawBitmap(image, leftPadding, topPadding, paint)
        canvas.restore()

        canvas.translate(leftPadding + imageSize / 2, topPadding + imageSize / 2)
        canvas.rotate(-foldDegree)
        camera.save()
        camera.rotateX(cameraRotationLower)
        camera.applyToCanvas(canvas)
        camera.restore()
        canvas.clipRect(-imageSize, 0.0f, imageSize, imageSize)
        canvas.rotate(foldDegree)
        canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
        canvas.drawBitmap(image, leftPadding, topPadding, paint)
    }

    private fun getAvatar(width: Float): Bitmap {
        val options: BitmapFactory.Options = BitmapFactory.Options()
        options.inJustDecodeBounds = true
        BitmapFactory.decodeResource(resources, R.drawable.avatar, options)
        options.inJustDecodeBounds = false
        options.inDensity = options.outWidth
        options.inTargetDensity = width.toInt()
        return BitmapFactory.decodeResource(resources, R.drawable.avatar, options)
    }
}
class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        val cameraView = findViewById<CameraView>(R.id.cameraView)

        val animatorSet = AnimatorSet()

        val animator1 = ObjectAnimator.ofFloat(cameraView, "cameraRotationLower", 45.0f)
            .apply { duration = 1500 }

        val animator2 =
            ObjectAnimator.ofFloat(cameraView, "foldDegree", 360.0f).apply { duration = 2000 }

        val animator3 = ObjectAnimator.ofFloat(cameraView, "cameraRotationUpper", -45.0f)
            .apply { duration = 1500 }

        with(animatorSet) {
            playSequentially(animator1, animator2, animator3)
            startDelay = 1000
            start()
        }
    }
}
